1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications

  • 1
  • 2

Brand Name : SWT

Model Number : SW-PA-100019000-20C

Place of Origin : China

MOQ : 1/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard Packing

Frequency Range : 1-19 GHz

Output Power 1dBcompression : 10 dBm

Gain : 20 dB

DC Power Supply : 15 V

Packing : Standard Packing

VSWR Input : 2.2:1 Ratio

Dimensions : 34.4*16.8*8.1 mm

Weight : 50 g

Application : radar systems, telecommunications, satellite communications, electronic warfare, test and measurement equipment

Contact Now

1-19GHz P1dB 10dBm Wide Band Low Noise Amplifier for radar systems, telecommunications

Description

The 1-19 GHz P1dB 10 dBm Wide Band Low Noise Amplifier (LNA) is a high-performance RF amplifier module designed for broad frequency applications. This amplifier is suitable for scenarios where low noise and stable gain are essential across a wide frequency range from 1 GHz to 19 GHz. Here are the primary specifications and features:

  • Frequency Range: 1 GHz to 19 GHz, covering a wide band for versatile use across multiple RF applications.
  • P1dB Output Power: 10 dBm, providing moderate output power before reaching the compression point, ensuring linear amplification of input signals.
  • Wideband Operation: Delivers consistent performance across a broad frequency range, making it flexible for various RF and microwave systems.
  • Low Noise Figure: Optimized to introduce minimal noise to the signal, enhancing the overall signal-to-noise ratio (SNR) and enabling clear amplification of weak signals.
  • High Gain: Provides sufficient gain across the 1-19 GHz range, enabling effective amplification without sacrificing signal quality.
  • Applications: Ideal for radar systems, telecommunications, satellite communications, electronic warfare, test and measurement equipment, and other RF applications that require wideband, low-noise amplification.

This LNA module is well-suited for systems that operate over multiple frequency bands and require low-noise amplification with stable performance. Its wide frequency range and moderate output power make it a versatile and reliable choice for high-frequency applications.

Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
ELECTRICAL SPECIFICATIONS@25
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 1 19 GHz
Small Signal Gain 20 27 dB
Small Signal Gain Flatness ±2 dB
Noise Figure 5 dB
Output Power 1dBcompression 10 dBm
IP3 dBm
VSWR Input/output 2.2:1 Ratio
DC Power Supply 15 Volt
Current 120 mA
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power +20 dBm
Operating Temperature -40 +85
Non-operating Temperature -55 +125
Relative humidity (non-condensing) 95 %
Altitude (MIL-STD-810F) 10000 30000 feet
Shock / Vibration (MIL-STD-810F) Airbone
MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT

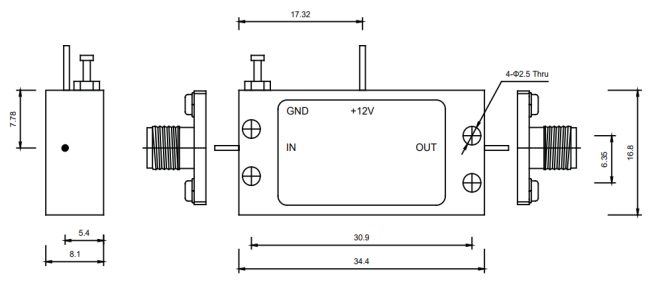

Dimensions 34.4*16.8*8.1 Max Millimeter
Weight 50 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50 Ohms
